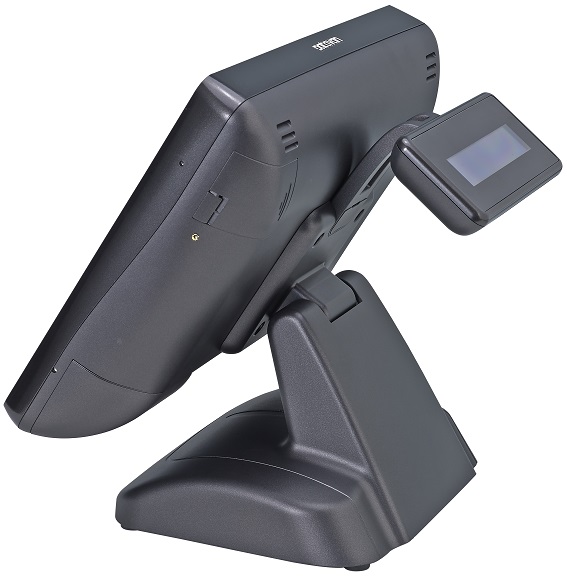

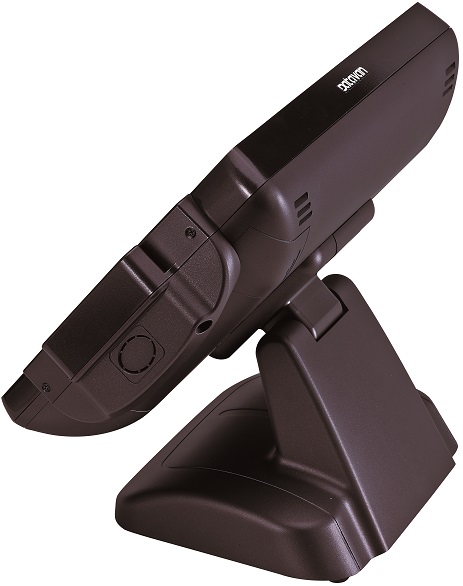

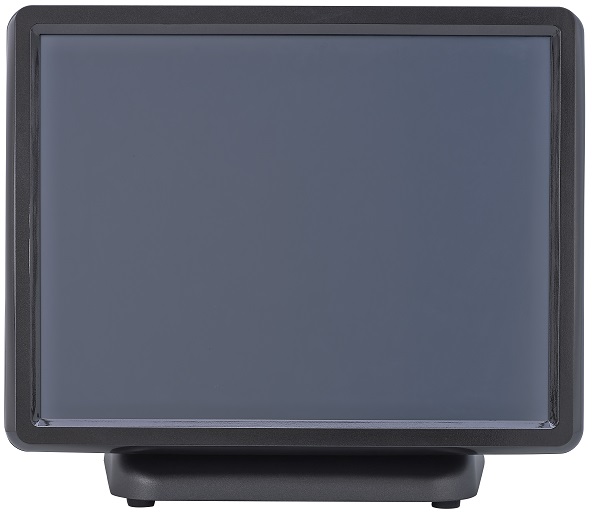

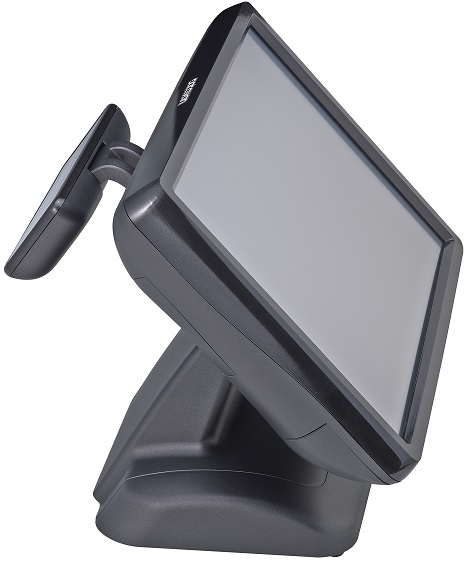

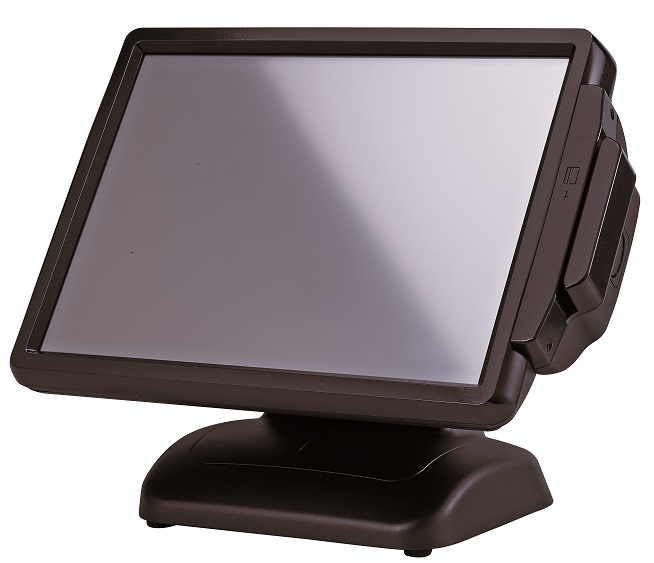

C Pos Model

Kraft full men fortsatt rimelig.

Model C er en rimeligere enn Model G men samtidig samme muligheter for eksempel oppheng med VESA montert på vegg eller en POS stang. Den er full skalerbart med andre modifikasjoner.


StandardOptional
LCD & Touch Panel
LCD Panel15” TFT display
Resolution1024 x 768 (default)
Brightness250 cd/m2
Touch Screen5-wire Resistive
System Configuration
Intel® CPUCore™ i3 2.1GHz
System Memory204Pin DDR3 RAM*2 slots,2 GB204Pin DDR3 RAM*2 slots, Up to 8GB
Storage1 x 64G 2.5” SATA SSD (default)
 1 x SATA DOM
I/O Ports
Serial Ports3 x DB-9 COM ports (COM1/3/4)3 x DB-9 COM ports (COM1/2/6)
 1 x RJ-45 COM port (COM5)1 x RJ-45 COM port (COM4)
 (All with DC 5V/12V output on Pin 9 selectable)(All with DC 5V/12V output on Pin 9 selectable)
USB Ports6 x USB 2.0 ports
LAN Port1 x (10/100/1000M bps auto)
Keyboard Port1 x PS/2 keyboard
Audio Port1 x Line out
VGA Port1 x DB-15 VGA port
Cash Drawer Port1 x RJ-12 port
 (GPIO, 12V/24V selectable)
Speaker Output2 x 1W speaker
DC Output1 x DC 12V output
Powering System

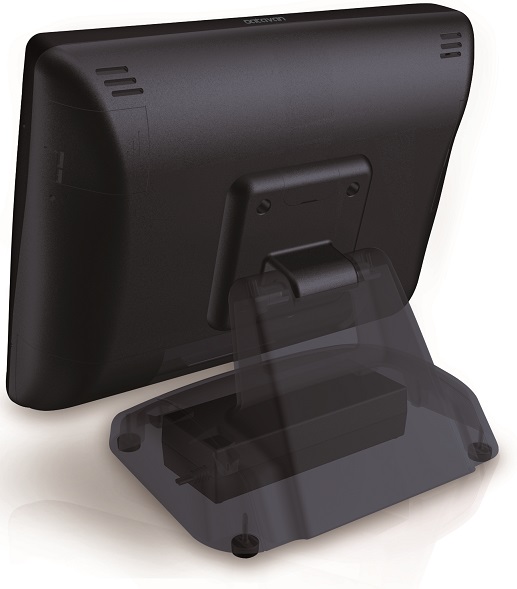

Power SupplyDC24V 120W external power supply (placed inside the system base)
Power Button1 x System on/off button
Brightness Control2 buttons for LCD brightness adjustment
Physical Dimensions
Wall mountVESA 75*75mm compliant
System DimensionDesktop model(C-615/C-815): 329*348*213mm
(L x W x D)VESA model(C-615V/C-815V): 267*348*75mm
System WeightDesktop model(C-615/C-815): 9Kg
 VESA model(C-615V/C-815V): 6Kg
Safety & Environment
Product CertificationCE/FCC/CCC/CB/BSMI/LVD Certificated
Operation Temperature0°C to 40°C
Storage Temperature-25°C to 70°C
O/S CompatibilityWin7 / POSReady 7 / Linux Kernel 2.6 or above
