Bluetooth

Enkel pakke for å løse kabel rot til din skriver.

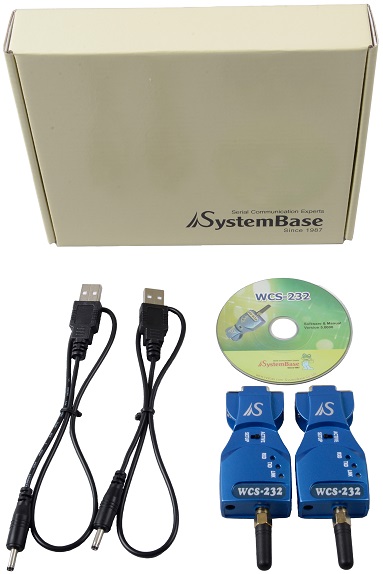

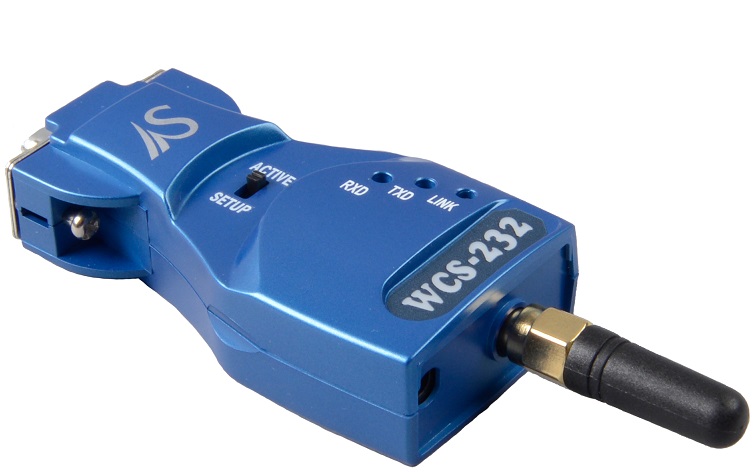

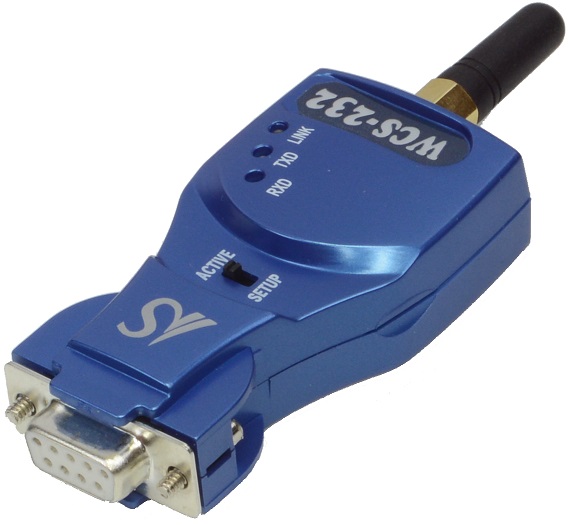

WCS-232 er en Class1 type Bluetooth Serial Adapter som lar deg raskt koble RS232 enheter opp til 100 meter unna. Inkluderer to adaptere for å skape et punkt til punkt-forbindelse og eliminerer behovet for kabling.

Nøkkel Info

RF Communication
ModeRF Communication
Speed3Mbps
DistanceMax. 1000m
RF SpecBluetooth Spec v2.0 +EDR
Bandwidth2.402~2.480GHz (ISM Band)
RF TypeFrequency Hopping (1,600times/sec)
Channels79.
ModulationGFSK
AntennaPolarization : None
Serial
ModeAsynchronous serial communication
Speed1200bps~115.2kbps Full Duplex
ConnectorRS232 : DB9 Female
SignalModem signals except RI
Protection15KV Surge Protection for all signals
Data Bits8 Data Bits
Stop Bits1, 2
ParityOdd, Even, No Parity
Buffer Size760 Bytes
Flow ControlRTS/CTS On/Off possible, DTR/DSR/DCD loop back connected
Hardware
Power Input5~12VDC
Power ConsumptionMax. 80mA @ 5VDC
LEDLink, TX, RX
Dimensions74(W) 37(H) 19(D)mm
Weight28g
EnclosurePlastic (Dark Blue Color)
Environmental
Operating Temp0-55C (32-131F)
Storage Temp-20-70C (-4-158F)
Humidity5 ~ 95% Non-Condensing
Approval
TypeCE, RoHS Compliant
