COM Kabling

Mangler du COM uttak fra din POS?

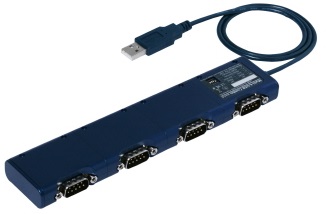

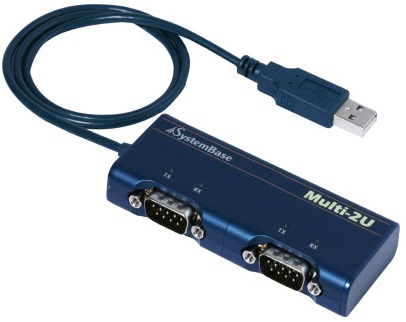

Det er enkelt måte å legge til flere serieporter til systemet via USB-porten. Multi-4 / 2 USB er utstyrt med kraftige semisplitter for å levere maksimal ytelse opptil 921.6Kbps.

Nøkkel Info.

Bus Interface
BUS TypeUSB Specification Revision 2.0
BUS SpeedHi Speed (480Mbps)
Serial
InterfaceRS232 or RS422/485
Number of Ports4 (DB9 Male)
Speed921.6 Kbps
SignalRS232 : TX,RX,DTR,DSR,RTS,CTS,DCD,RI,GND
 RS422 : TX+, RX-, TX+, TX-
 RS485 : TRX+, TRX-
Protection15kV ESD Protector
Data Bit7, 8
Stop Bit1, 2
Parity BitNone, Even, Odd
Data Flow ControlRTS/CTS, XON/XOFF
Software
OSWindows CE/XP/2003/Vista/7/2K8, Linux kernel 2.4, 2.6, 3.0, MAC OS X
Hardware
DimensionsMulti-4U/USB : 189(L) X 39(W) X 16.3(H) mm – 7.4(L) X 1.5(W) X .64(H) in
 Multi-2U/USB : 94.0(L) X 39.0(W) X 16.3(H) mm – 3.7(L) X 1.5(W) X .64(H)
ConnectorDB9 Male Connector 4EA
Length of CableMulti-4U/USB: 60Cm
 Multi-2U/USB: 60Cm
Power ConsumptionMulti-4U/USB : 400mA@5V
 Multi-2U/USB : 280mA@5V
Approvals
TypeKCC, CE, FCC
